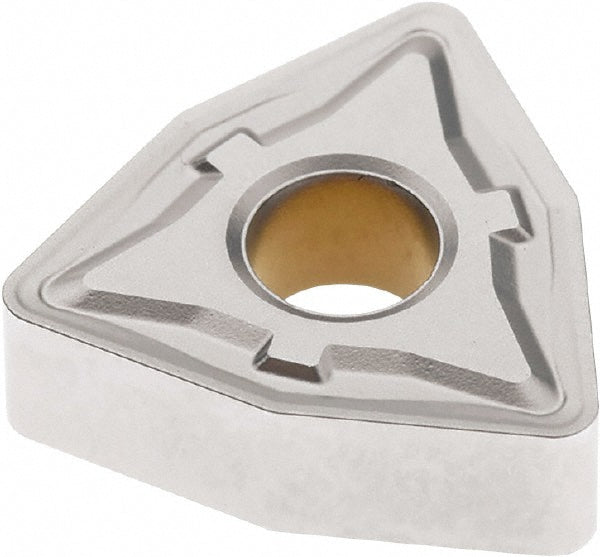

WNMG080408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064508

Seco

WNMG080408-M5 Carbide Insert, Grade TK1501, TiCN - Seco 03064508

MFR# 03064508ISO/ANSI# WNMG432-M5Series WNMG-M5

$21.05List $27.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03064508 is a WNMG080408-M5 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-M5
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number03064508
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.3307
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
