Seco

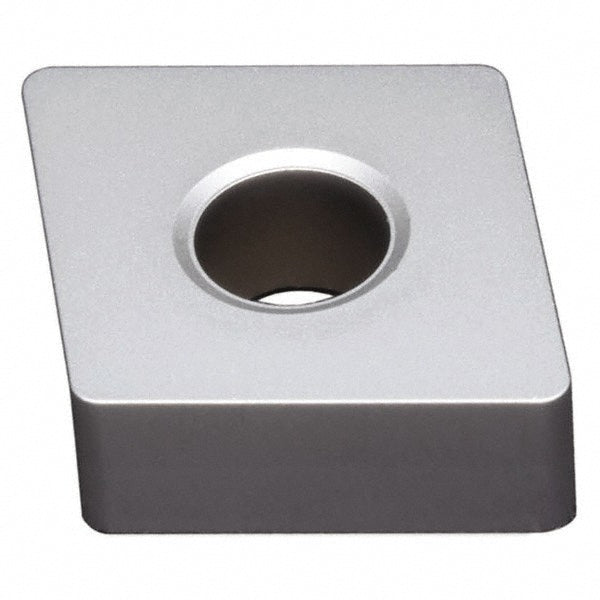

CNMA120408 Carbide Insert, Grade TK1501, TiCN - Seco 03064530
MFR# 03064530ISO/ANSI# CNMA432Series CNMA-Flat Top
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03064530 is a CNMA120408 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120408
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03064530
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
