Seco

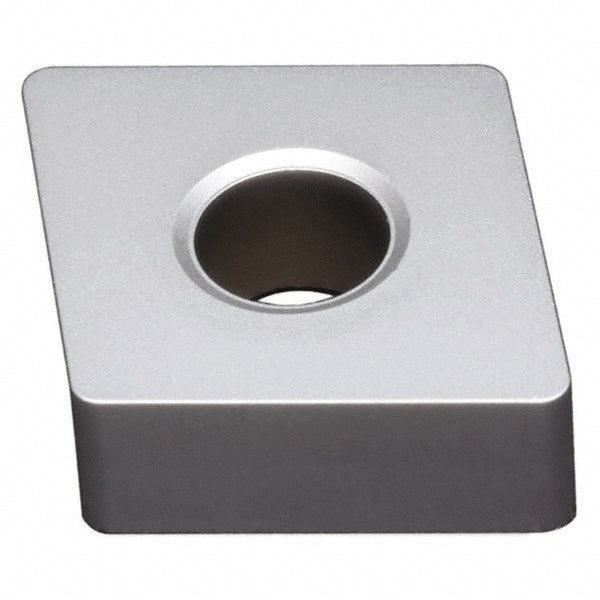

CNMA120412 Carbide Insert, Grade TK1501, TiCN - Seco 03064531
MFR# 03064531ISO/ANSI# CNMA120412Series CNMA-Flat Top
$23.32List $29.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03064531 is a CNMA120412 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCNMA433
Ansi size code433
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMA433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120412
Iso insert codeCNMA120412
Iso size code120412
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03064531
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
