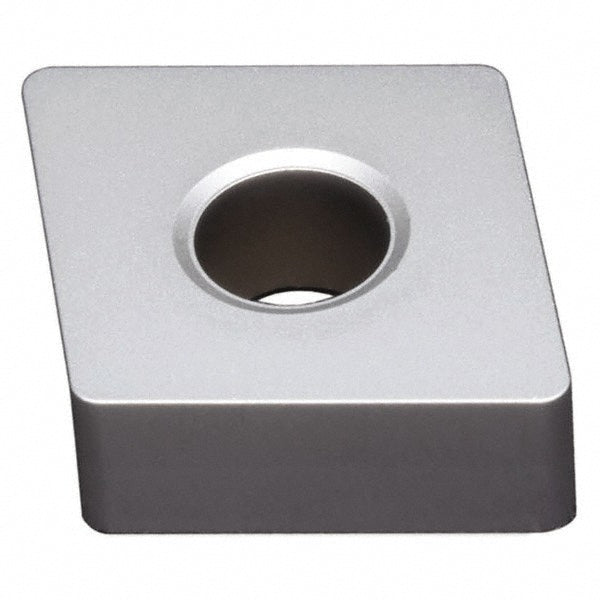

CNMA190612 Carbide Insert, Grade TK1501, TiCN - Seco 03064532

Seco

CNMA190612 Carbide Insert, Grade TK1501, TiCN - Seco 03064532

MFR# 03064532ISO/ANSI# CNMA190612Series CNMA-Flat Top

$38.23List $49.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03064532 is a CNMA190612 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCNMA643
Ansi size code643
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.3118
Included angle80
Industry standard numberCNMA643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMA
Insert thickness in1/4
Iso codeCNMA190612
Iso insert codeCNMA190612
Iso size code190612
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number03064532
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.7126
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
