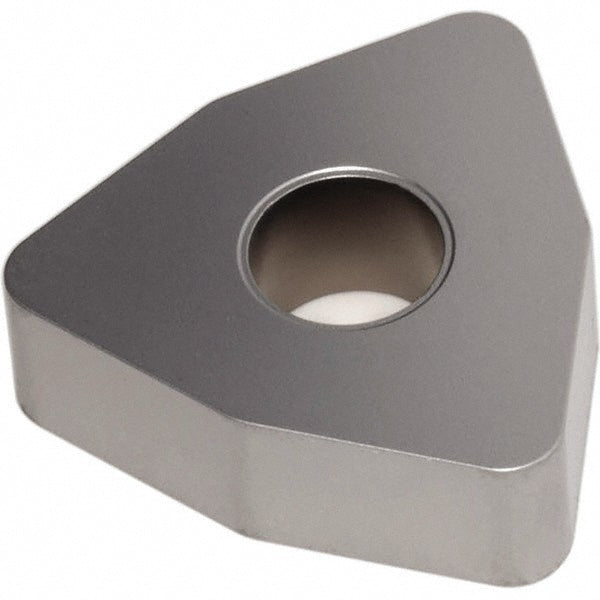

WNMA060408 Carbide Insert, Grade TK1501, TiCN - Seco 03064540
MFR# 03064540ISO/ANSI# WNMA332Series WNMA-Flat Top
$17.33List $22.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTK1501
MaterialCarbide
CoatingTiCN
Description
The Seco 03064540 is a WNMA060408 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMA332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMA
Insert thickness in3/16
Iso codeWNMA060408
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03064540
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.2283
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
