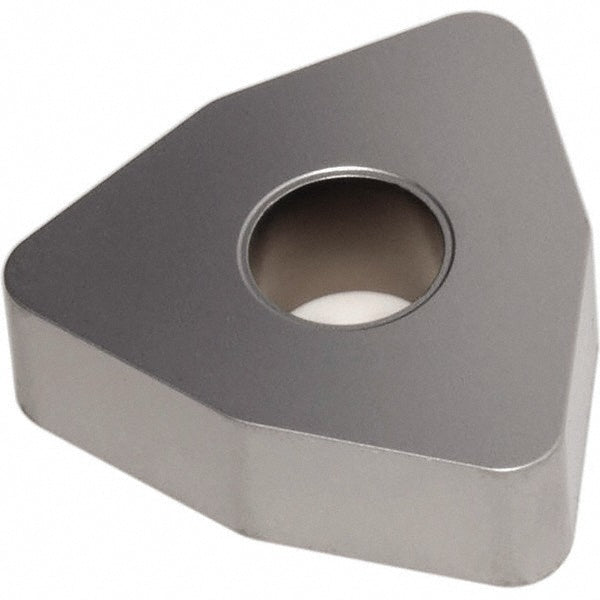

WNMA080408 Carbide Insert, Grade TK1501, TiCN - Seco 03064542

Seco

WNMA080408 Carbide Insert, Grade TK1501, TiCN - Seco 03064542

MFR# 03064542ISO/ANSI# WNMA080402Series WNMA-Flat Top

$21.05List $27.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeTK1501
MaterialCarbide
CoatingTiCN

Description

The Seco 03064542 is a WNMA080408 carbide indexable insert, grade TK1501, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeWNMA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberWNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMA
Insert thickness in3/16
Iso codeWNMA080408
Iso insert codeWNMA080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number03064542
Manufacturer gradeTK1501
Material gradeK10; K20; K30
Maximum depth of cut0.3110
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Secondary workpiece materialSteel; Stainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
