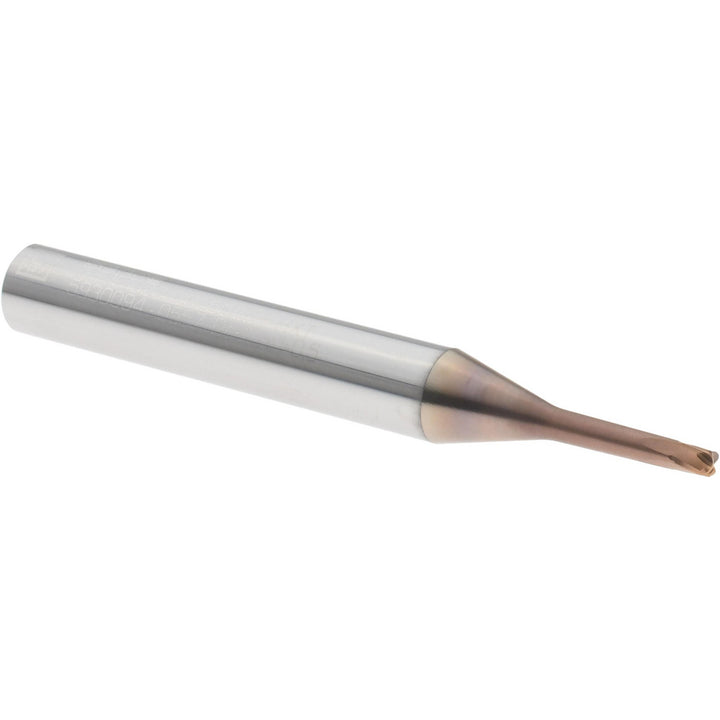

4-Flute Solid Carbide High-Feed End Mill, HXT - Seco 03067318
MFR# 03067318Series JHF181
$144.65List $179.28
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 03067318 is a 4-flute Solid Carbide (Micrograin) high-feed end mill with a HXT finish for longer tool life. Series JHF181.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
Extended reachYes
Finish coatingHXT
Flute directionRight Hand
Flute typeSpiral
Helix angle10
Length of cut (mm)0.50
Length typeStandard
MaterialSolid Carbide
Material gradeMicrograin
Mill diameter (mm)2.00
Neck diameter (mm)1.80
Number of flutes4
Overall length (mm)50.00
Reach length (mm)10.00
Shank diameter (mm)6.00
Shank typeCylindrical
Single or double endSingle
