Seco

3/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03083779

MFR# 03083779Series STR440.2

$311.10List $399.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

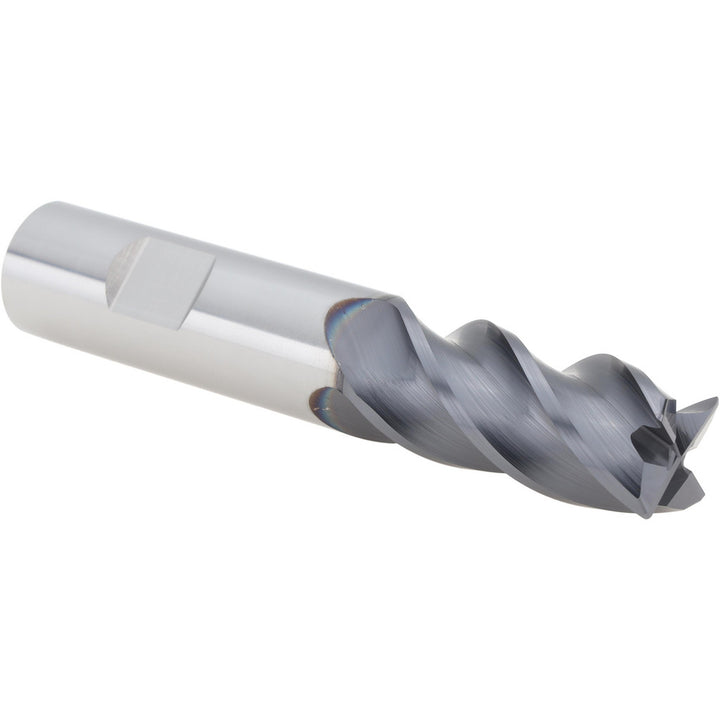

The Seco 03083779 is a 3/4 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series STR440.2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance0.00100 in; +0.02500 to -0.02500 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/2

Length typeShort

Material applicationStainless Steel; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes4

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchNormal

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Tir maximum0.0005

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
