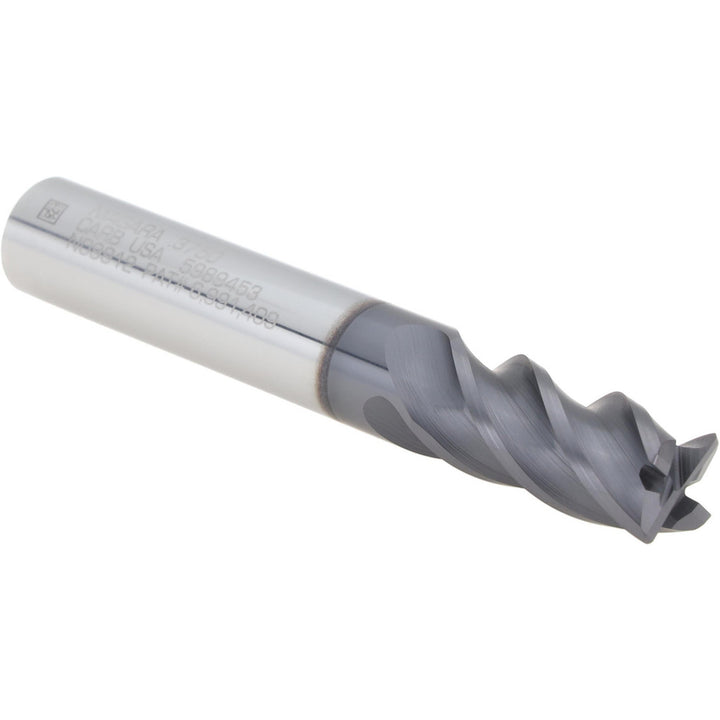

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03084154

Seco

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03084154

MFR# 03084154Series STR440.2

$96.81List $122.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 03084154 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series STR440.2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance0.00100 in; +0.02500 to -0.02500 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in3/4
Length typeShort
Material applicationStainless Steel; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance-0.0600/0.0600 in
PitchNormal
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
Tir maximum0.0005
Variable helixYes
Variable indexNo
