Seco

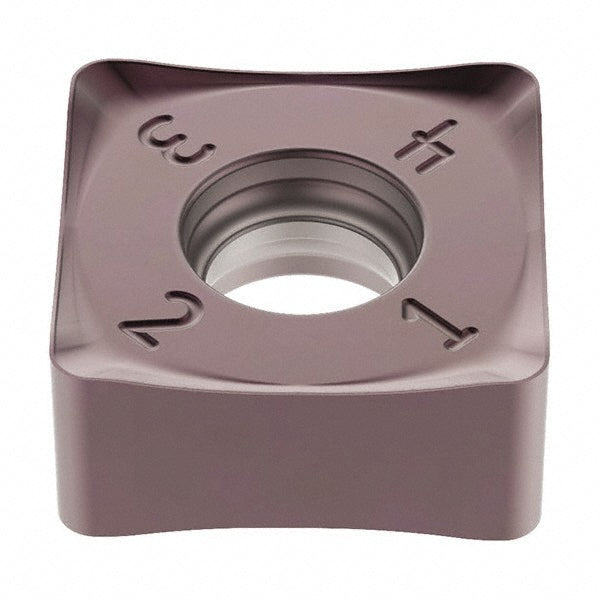

SNMU120410TN-M10 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 03091457
MFR# 03091457ISO/ANSI# SNMU120410TN-M10Cat# SNMU120410TN-M10Series SNMU-12
$28.46List $36.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 03091457 is a SNMU120410TN-M10 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeSNMU120410TN-M10
Chip breakerM10
Coating finishTiSiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR220.88-12
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120410
Insert styleSNMU
Iso codeSNMU120410TN-M10
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberSNMU120410TN-M10
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.3898
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSteel; Hard Material
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness in13/64
Thickness range0.1850 to 0.2000
Width0.4724
