Seco

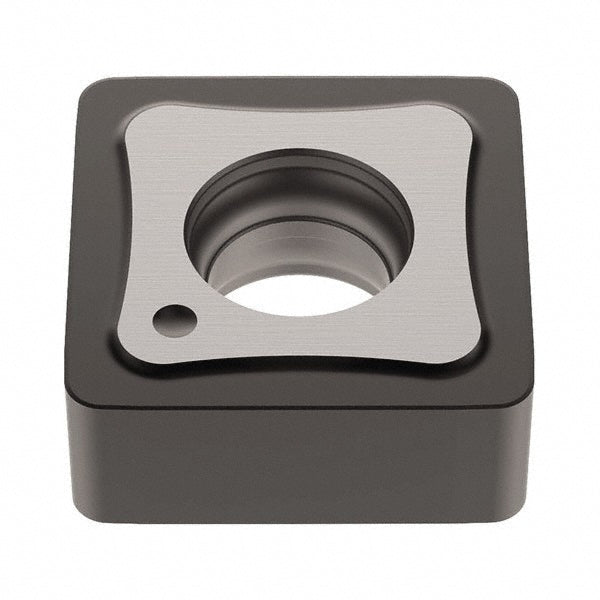

SNMU120410TN-MD13 Solid Carbide Insert, Grade MK1500, TiCN - Seco 03091462
MFR# 03091462ISO/ANSI# SNMU120410TN-MD13Cat# SNMU120410TN-MD13Series SNMU-12
$29.30List $37.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03091462 is a SNMU120410TN-MD13 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeSNMU120410TN-MD13
Chip breakerMD13
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR220.88-12
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120410
Insert styleSNMU
Iso codeSNMU120410TN-MD13
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberSNMU120410TN-MD13
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.3858
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0.00
ShapeSquare
Single or double sided insertDouble
StandardsISO
Thickness0.1890
Thickness range0.1850 to 0.2000
Width0.4724
