Seco

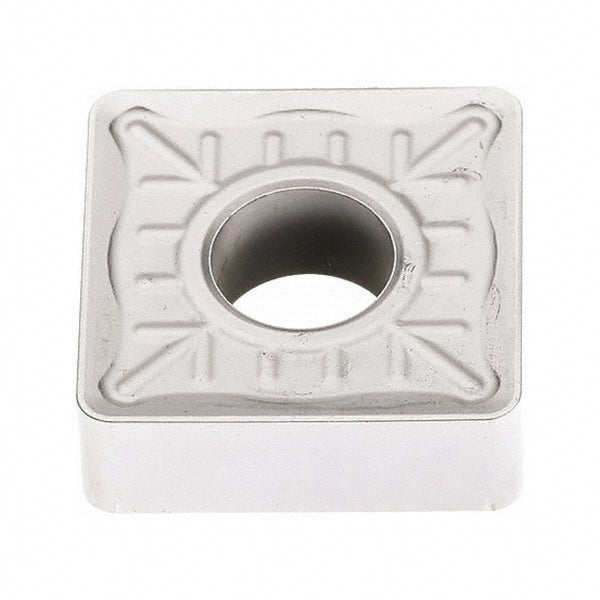

SNMM190616-R7 Carbide Insert, Grade TP3501, TiCN - Seco 03093876
MFR# 03093876ISO/ANSI# SNMM644-R7Series SNMM-R7
$42.04List $53.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093876 is a SNMM190616-R7 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3118
Included angle90
Industry standard numberSNMM644-R7
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMM
Insert thickness in1/4
Iso codeSNMM190616-R7
Lead angle90
Length range0.7000 - 10.0000
Manufacturers catalog number03093876
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.6890
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
