Seco

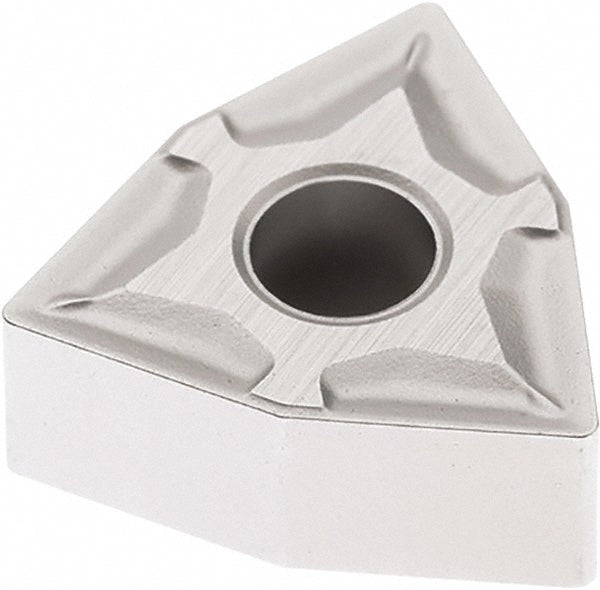

WNMG060408-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03093884
MFR# 03093884ISO/ANSI# WNMG332-M3Series WNMG-M3
$17.27List $22.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093884 is a WNMG060408-M3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG332-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03093884
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.2441
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
