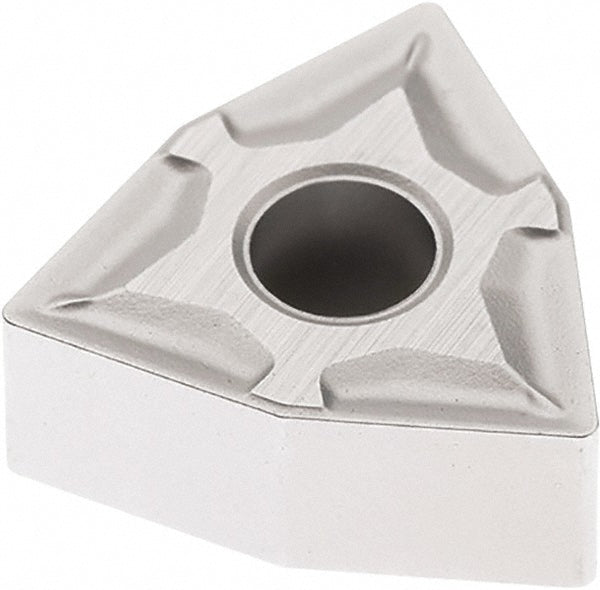

WNMG080412-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03093888

Seco

WNMG080412-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03093888

MFR# 03093888ISO/ANSI# WNMG080412Series WNMG-M3

$21.05List $27.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03093888 is a WNMG080412-M3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeWNMG433
Ansi size code433
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberWNMG433-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-M3
Iso insert codeWNMG080412
Iso size code080412
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number03093888
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.3228
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
