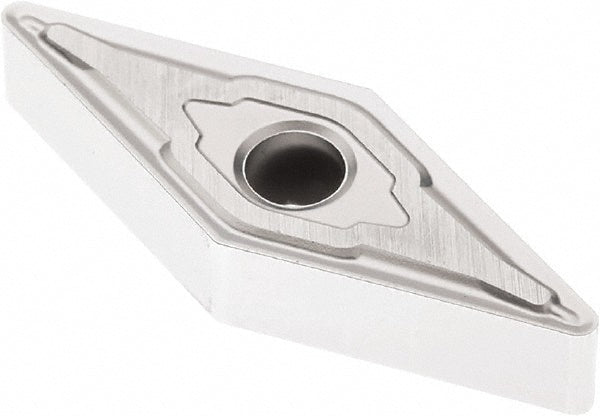

VNMG160408-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03093890

Seco

VNMG160408-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03093890

MFR# 03093890ISO/ANSI# VNMG160408Series VNMG-M3

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03093890 is a VNMG160408-M3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-M3
Iso insert codeVNMG160408
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number03093890
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
