Seco

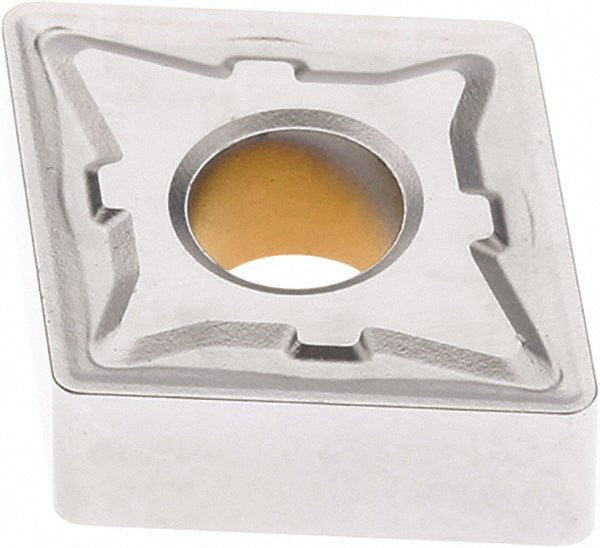

CNMG120408-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03093916
MFR# 03093916ISO/ANSI# CNMG432-M5Series CNMG-M5
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093916 is a CNMG120408-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-M5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-M5
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03093916
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
