Seco

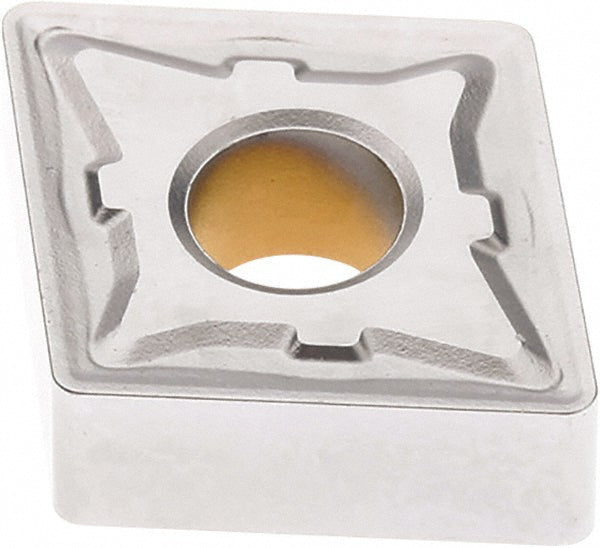

CNMG160608-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03093918
MFR# 03093918ISO/ANSI# CNMG542-M5Series CNMG-M5
$27.45List $35.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093918 is a CNMG160608-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG542-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6339
Insert materialCarbide
Insert shapeDiamond 80
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608-M5
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number03093918
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.6024
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
