Seco

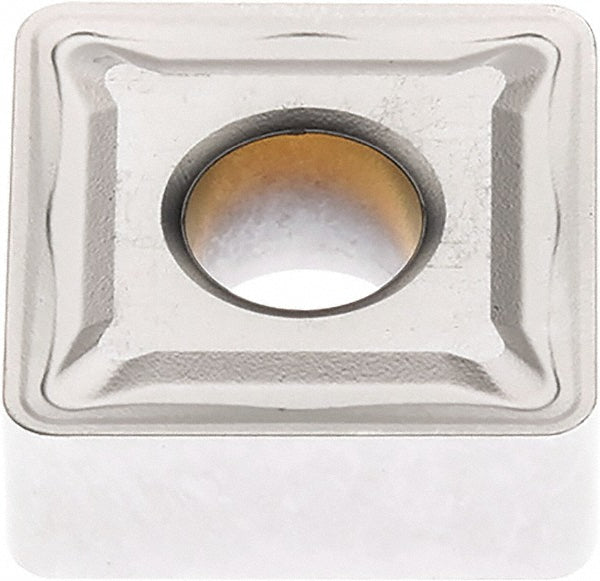

SNMG090308-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03093929
MFR# 03093929ISO/ANSI# SNMG322-M5Series SNMG-M5
$12.54List $16.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093929 is a SNMG090308-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle90degree
Industry standard numberSNMG322-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in3/8
Insert materialCarbide
Insert shapeSquare
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG090308-M5
Lead angle90degree
Length range0.3000 - 0.4000
Manufacturers catalog number03093929
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.3425
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
