Seco

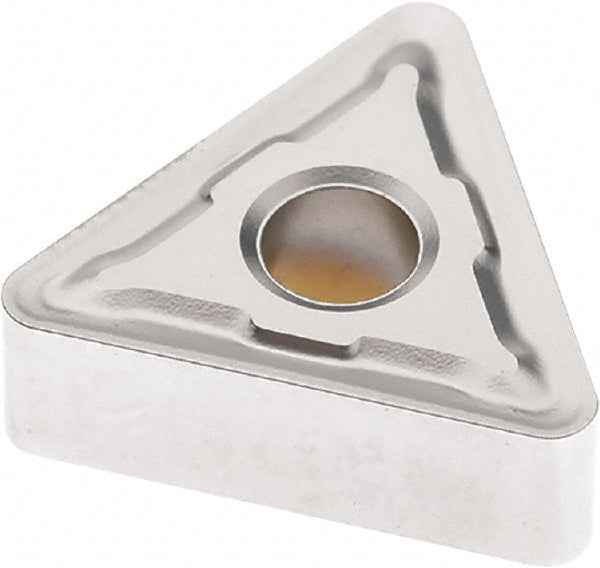

TNMG160308-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03093934
MFR# 03093934ISO/ANSI# TNMG322-M5Series TNMG-M5
$15.24List $19.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03093934 is a TNMG160308-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG322-M5
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160308-M5
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03093934
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
