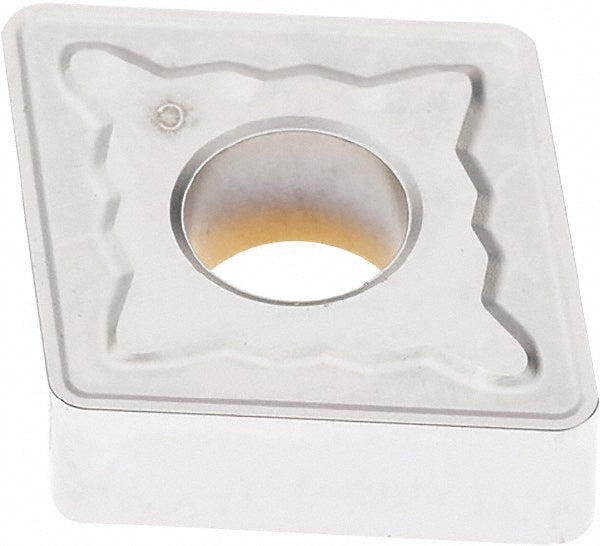

CNMG120412-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03094142

Seco

CNMG120412-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03094142

MFR# 03094142ISO/ANSI# CNMG120412Series CNMG-MR7

$17.44List $22.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03094142 is a CNMG120412-MR7 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerMR7
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG433-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-MR7
Iso insert codeCNMG120412
Iso size code120412
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03094142
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.4606
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
