Seco

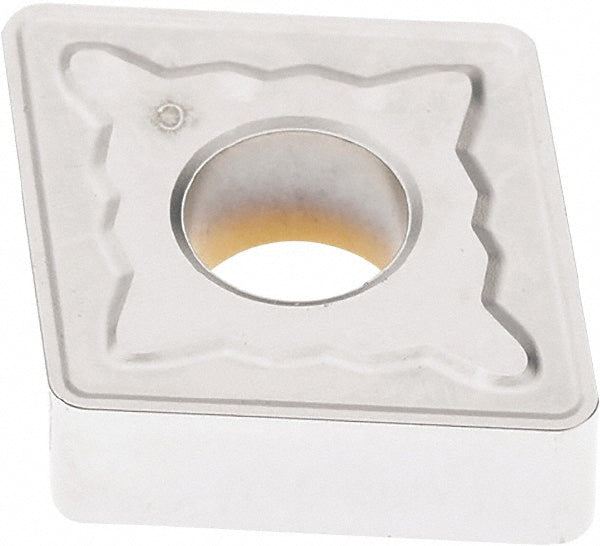

CNMG190612-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03094144
MFR# 03094144ISO/ANSI# CNMG643-MR7Series CNMG-MR7
$42.04List $53.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03094144 is a CNMG190612-MR7 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.3118
Included angle80degree
Industry standard numberCNMG643-MR7
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-MR7
Lead angle80degree
Length range0.7000 - 10.0000
Manufacturers catalog number03094144
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.7126
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
