Seco

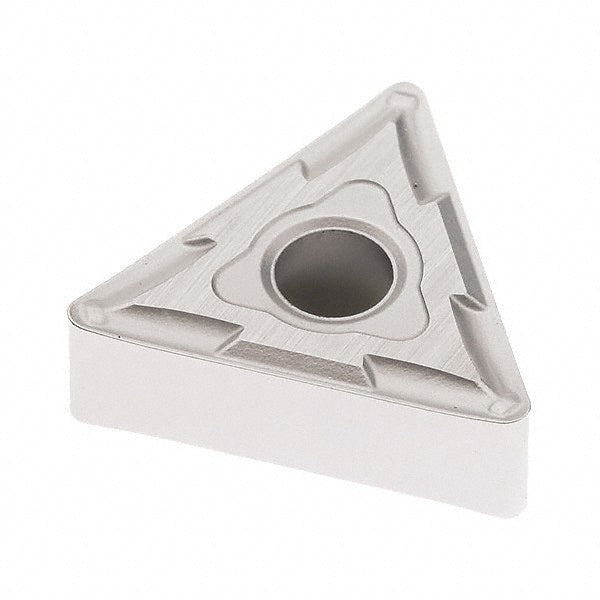

TNMG160408-MF2 Carbide Insert, Grade TP3501, TiCN - Seco 03094158
MFR# 03094158ISO/ANSI# TNMG332-MF2Series TNMG-MF2
$16.77List $21.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03094158 is a TNMG160408-MF2 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG332-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408-MF2
Lead angle60degree
Length range0.6000 - 0.6500
Manufacturers catalog number03094158
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496in
Wiper edgeNo
