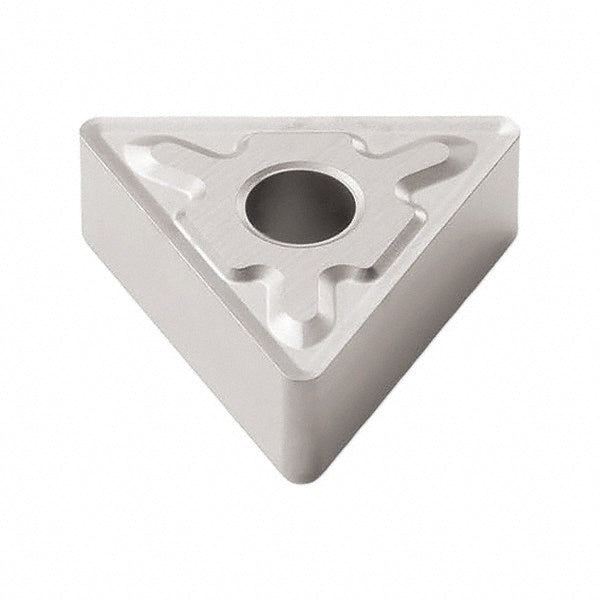

TNMG160408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03094159

Seco

TNMG160408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03094159

MFR# 03094159ISO/ANSI# TNMG332-MF3Series TNMG-MF3

$16.77List $21.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03094159 is a TNMG160408-MF3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332-MF3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408-MF3
Lead angle60
Length range0.6000 - 0.6500
Manufacturers catalog number03094159
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5709
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
