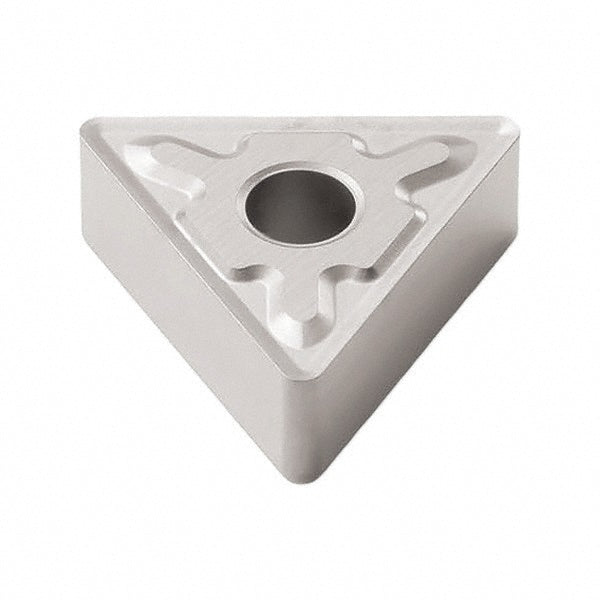

TNMG220404-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03094161

Seco

TNMG220404-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03094161

MFR# 03094161ISO/ANSI# TNMG431-MF3Series TNMG-MF3

$23.23List $29.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03094161 is a TNMG220404-MF3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG431-MF3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404-MF3
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number03094161
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.8268
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
