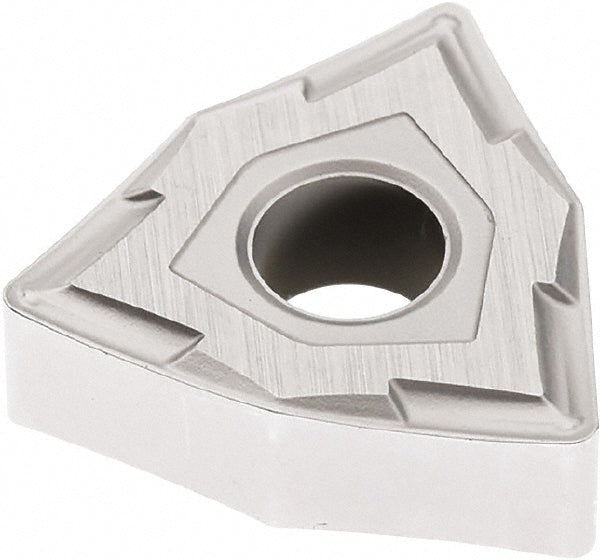

WNMG060404-MF2 Carbide Insert, Grade TP3501, TiCN - Seco 03094162

Seco

WNMG060404-MF2 Carbide Insert, Grade TP3501, TiCN - Seco 03094162

MFR# 03094162ISO/ANSI# WNMG331-MF2Series WNMG-MF2

$17.27List $22.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03094162 is a WNMG060404-MF2 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80degree
Industry standard numberWNMG331-MF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5118
Insert materialCarbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404-MF2
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03094162
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.2480
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
