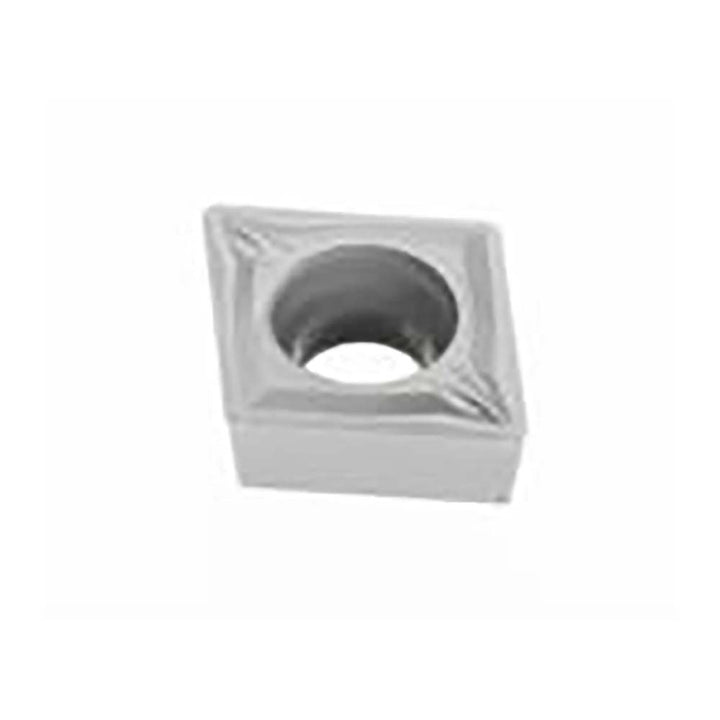

CCMT060208-MF2 Carbide Insert, Grade TP3501, TiCN - Seco 03095435

Seco

CCMT060208-MF2 Carbide Insert, Grade TP3501, TiCN - Seco 03095435

MFR# 03095435ISO/ANSI# CCMT060208Series CCMT-MF2

$13.06List $16.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03095435 is a CCMT060208-MF2 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerMF2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21.52-MF2
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208-MF2
Iso insert codeCCMT060208
Iso size code060208
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number03095435
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.2205
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
