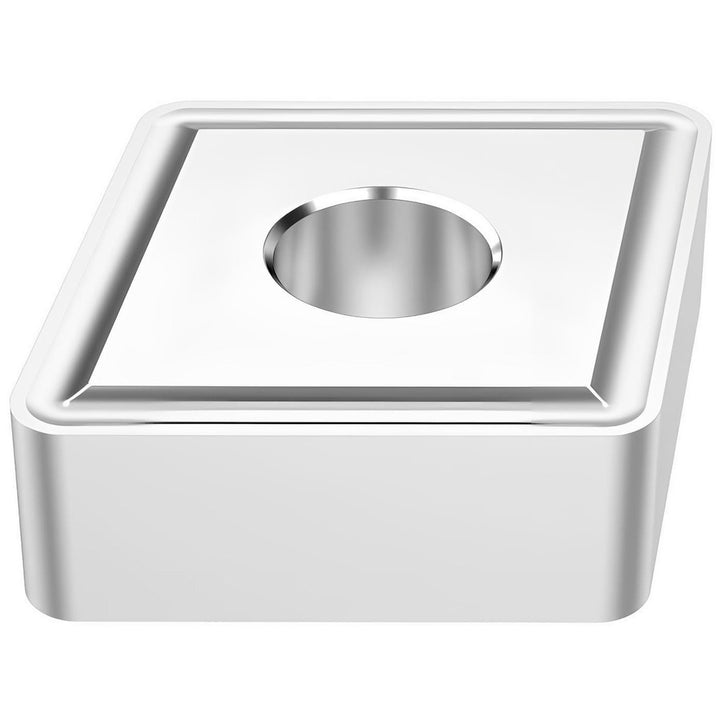

CNMG250924-MR4 Carbide Insert, Grade TP3501, TiCN - Seco 03095579

Seco

CNMG250924-MR4 Carbide Insert, Grade TP3501, TiCN - Seco 03095579

MFR# 03095579ISO/ANSI# CNMG250924Series CNMG-MR4

$85.89List $110.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeC - Diamond (Rhombic) 80-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03095579 is a CNMG250924-MR4 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG866
Ansi size code866
Chip breakerMR4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3591
Included angle80
Industry standard numberCNMG866-MR4
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in1-1/64
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code866
Insert styleCNMG
Insert thickness in3/8
Iso codeCNMG250924-MR4
Iso insert codeCNMG250924
Iso size code250924
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number03095579
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.9173
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1
Wiper edgeNo
