Seco

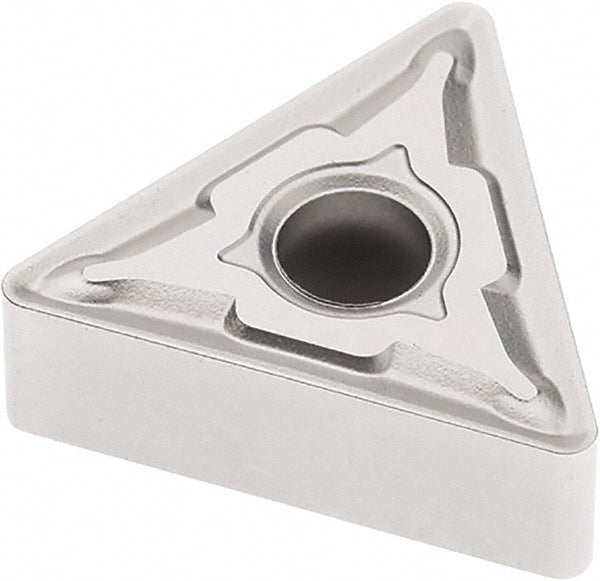

TNMG270612-M3 Carbide Insert, Grade TP3501, TiCN - Seco 03095589
MFR# 03095589ISO/ANSI# TNMG543-M3Series TNMG-M3
$35.62List $45.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03095589 is a TNMG270612-M3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle60
Industry standard numberTNMG543-M3
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.0827
Insert materialCarbide
Insert shapeTriangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270612-M3
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number03095589
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.9685
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width1.0827
Wiper edgeNo
