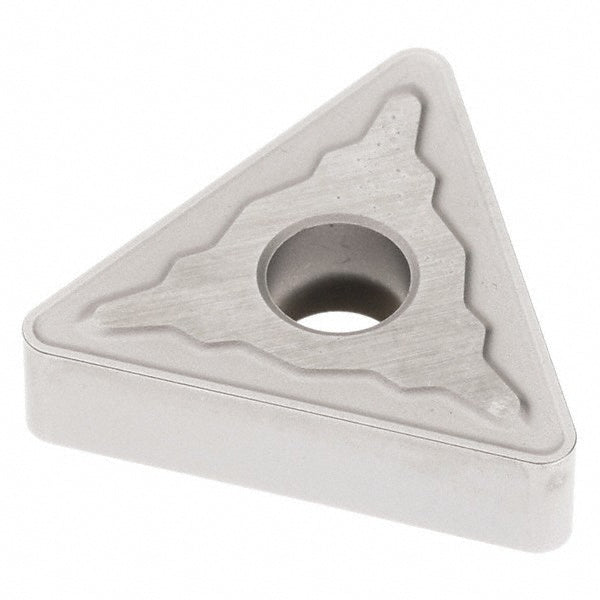

TNMG270616-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03095593

Seco

TNMG270616-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03095593

MFR# 03095593ISO/ANSI# TNMG544-MR7Series TNMG-MR7

$39.08List $50.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeTriangle
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03095593 is a TNMG270616-MR7 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2500
Included angle60degree
Industry standard numberTNMG544-MR7
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.0827
Insert materialCarbide
Insert shapeTriangle
Insert size code544
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270616-MR7
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number03095593
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.9291
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width1.0827in
Wiper edgeNo
