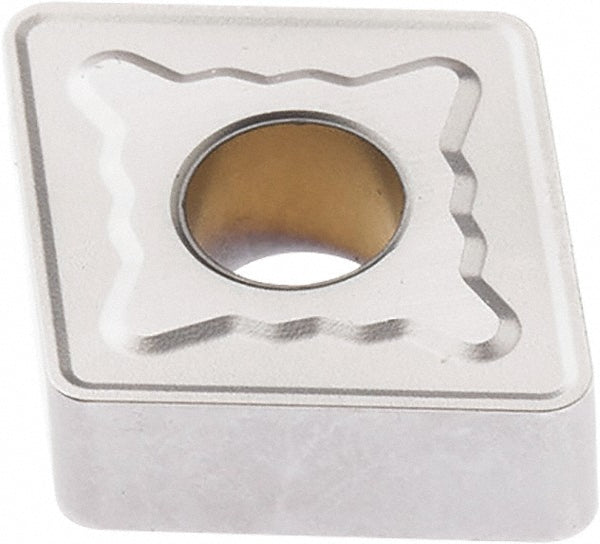

CNMG120416-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03096312

Seco

CNMG120416-MR7 Carbide Insert, Grade TP3501, TiCN - Seco 03096312

MFR# 03096312ISO/ANSI# CNMG434-MR7Series CNMG-MR7

$19.12List $24.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03096312 is a CNMG120416-MR7 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMR7
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle80
Industry standard numberCNMG434-MR7
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120416-MR7
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03096312
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.4449
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
