Seco

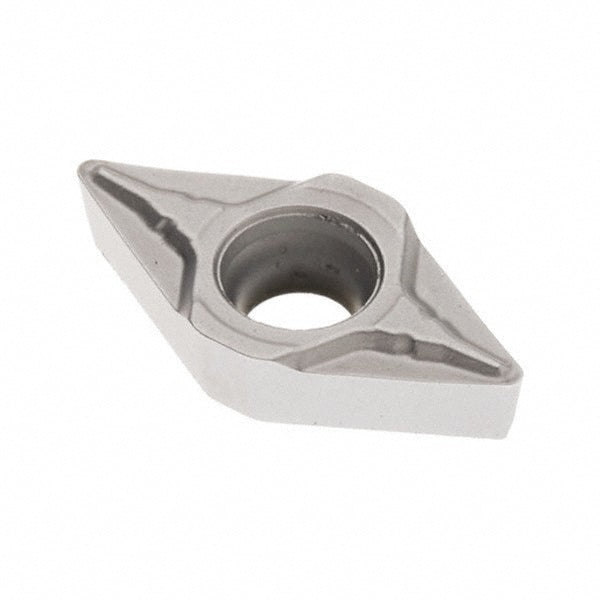

DCMT11T302-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096358
MFR# 03096358ISO/ANSI# DCMT32.50.5-F1Series DCMT-F1
$20.14List $25.82
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03096358 is a DCMT11T302-F1 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCMT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03096358
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.4488
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
