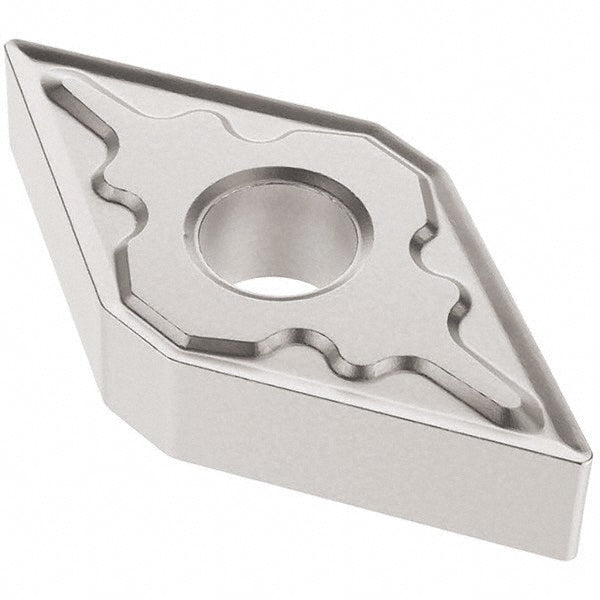

DNMG150408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03096374

Seco

DNMG150408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03096374

MFR# 03096374ISO/ANSI# DNMG432-MF3Series DNMG-MF3

$24.08List $30.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03096374 is a DNMG150408-MF3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle55degree
Industry standard numberDNMG432-MF3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MF3
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03096374
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
