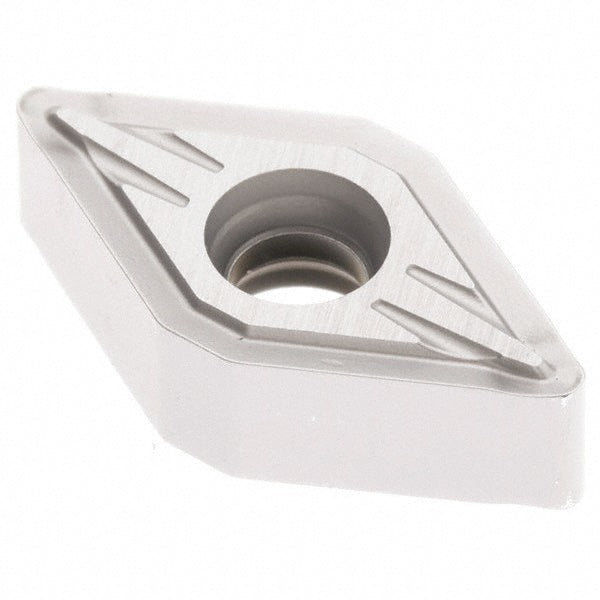

DNMU110404-FF2 Carbide Insert, Grade TP3501, TiCN - Seco 03096388
MFR# 03096388ISO/ANSI# DNMU331-FF2Series DNMU-FF2
$19.96List $25.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03096388 is a DNMU110404-FF2 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerFF2
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU331-FF2
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code331
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110404-FF2
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03096388
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
