Seco

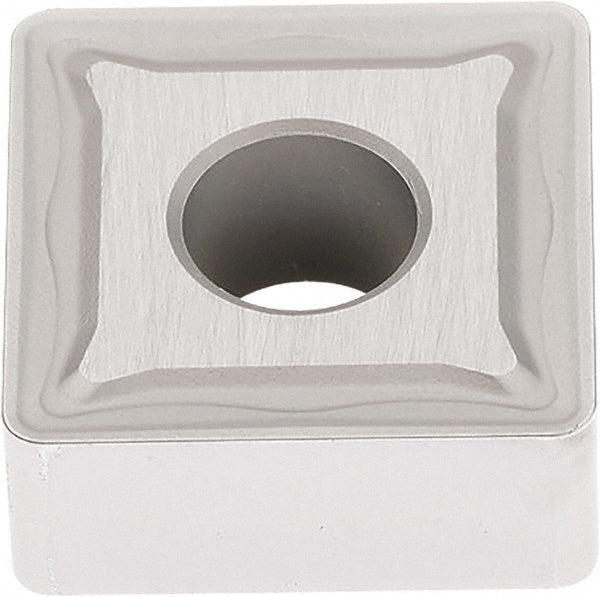

SNMG150612-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03096547
MFR# 03096547ISO/ANSI# SNMG543-M5Series SNMG-M5
$36.77List $46.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03096547 is a SNMG150612-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle90degree
Industry standard numberSNMG543-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length in5/8
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612-M5
Lead angle90degree
Length range0.6000 - 0.6500
Manufacturers catalog number03096547
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5787
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
