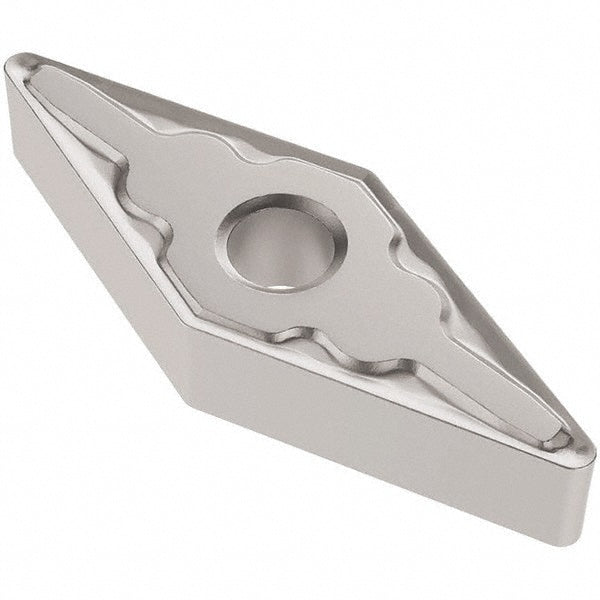

VNMG160408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03096610

Seco

VNMG160408-MF3 Carbide Insert, Grade TP3501, TiCN - Seco 03096610

MFR# 03096610ISO/ANSI# VNMG332-MF3Series VNMG-MF3

$34.95List $44.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03096610 is a VNMG160408-MF3 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Chip breakerMF3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-MF3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MF3
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number03096610
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
