Seco

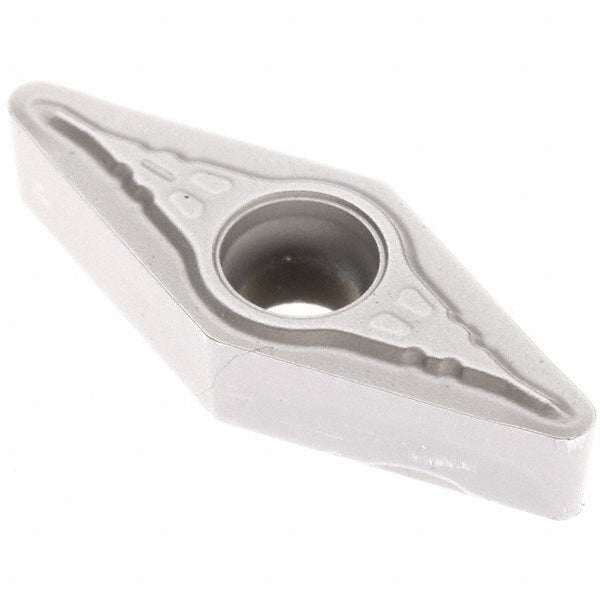

VBMT110204-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096652
MFR# 03096652ISO/ANSI# VBMT21.51-F1Series VBMT-F1
$20.39List $26.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03096652 is a VBMT110204-F1 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle35degree
Industry standard numberVBMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond 35
Insert size code21.51
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT110204-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number03096652
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.3976
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
