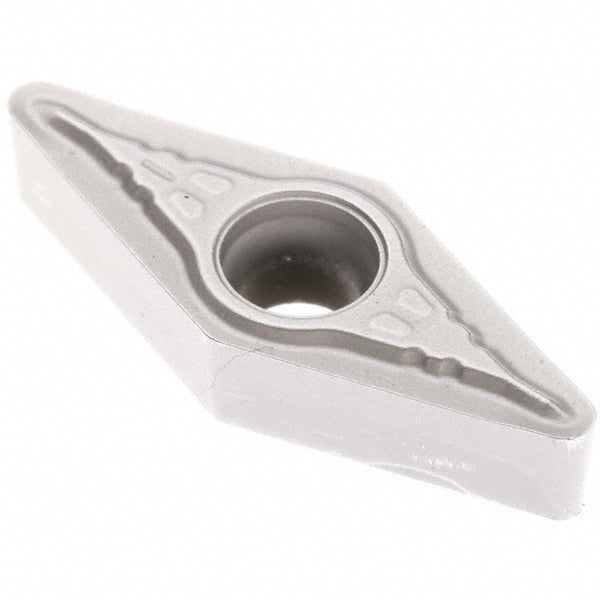

VBMT160402-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096655

Seco

VBMT160402-F1 Carbide Insert, Grade TP3501, TiCN - Seco 03096655

MFR# 03096655ISO/ANSI# VBMT160402Series VBMT-F1

$26.70List $34.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03096655 is a VBMT160402-F1 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeVBMT330.5
Ansi size code330.5
Chip breakerF1
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT330.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160402-F1
Iso insert codeVBMT160402
Iso size code160402
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number03096655
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.6339
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
