Seco

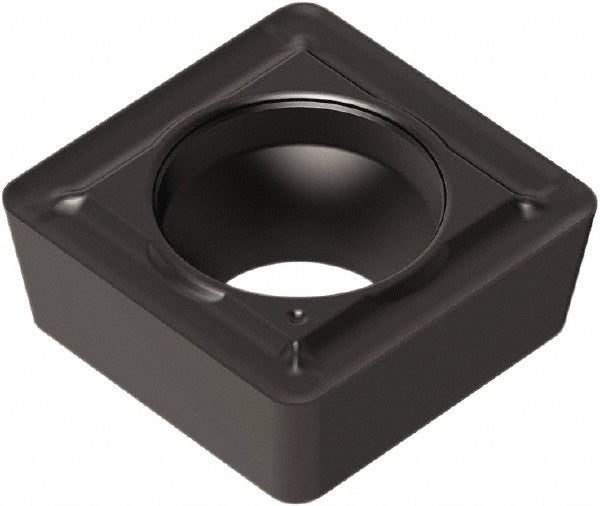

0.4531" IC Solid Carbide Insert, Grade DP3000, Coated - Seco 03097762
MFR# 03097762Series Perfomax
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP3000
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03097762 is a solid carbide indexable insert, grade DP3000, Coated coated. Suited for universal.
Specifications
ChipbreakerP2
Coating finishCoated
Coating processDuratomic
Corner radius (mm)0.80
Cutting directionLeft Hand; Right Hand
Included angle degree90
Inscribed circle0.4531
Insert materialSolid Carbide
Insert size11T308
Insert size code11
Insert styleSCGX
Length0.4531
Manufacturer gradeDP3000
Material gradeC3; C4
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Width0.4531
