Seco

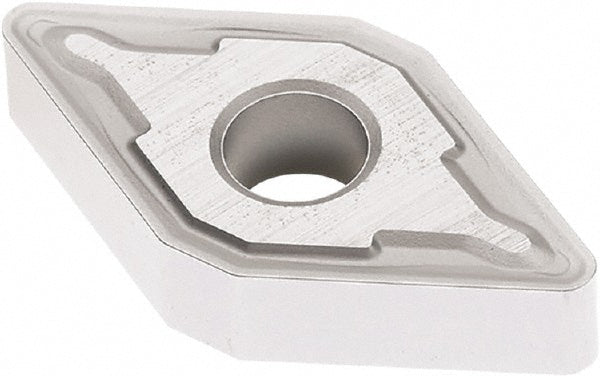

DNMG190608-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03100386
MFR# 03100386ISO/ANSI# DNMG542-M5Series DNMG-M5
$44.75List $56.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 55
GradeTP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 03100386 is a DNMG190608-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.
Specifications
Chip breakerM5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle55degree
Industry standard numberDNMG542-M5
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.5276
Insert materialCarbide
Insert shapeDiamond 55
Insert size code542
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG190608-M5
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number03100386
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.7165
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
