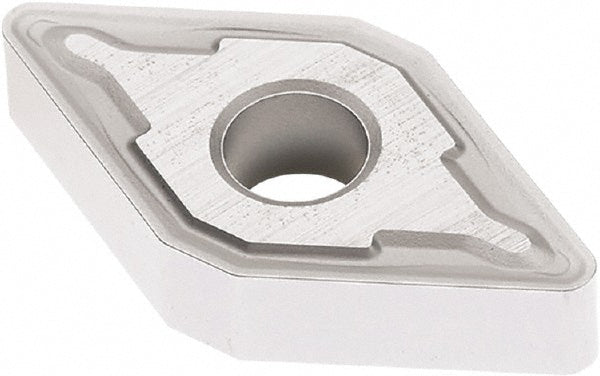

DNMG190612-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03100387

Seco

DNMG190612-M5 Carbide Insert, Grade TP3501, TiCN - Seco 03100387

MFR# 03100387ISO/ANSI# DNMG190612Series DNMG-M6

$36.70List $47.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTP3501
MaterialCarbide
CoatingTiCN

Description

The Seco 03100387 is a DNMG190612-M5 carbide indexable insert, grade TP3501, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDNMG543
Ansi size code543
Chip breakerM6
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle55
Industry standard numberDNMG543-M6
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.5276
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code543
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG190612-M5
Iso insert codeDNMG190612
Iso size code190612
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number03100387
Manufacturer gradeTP3501
Material gradeP20; P30; P40
Maximum depth of cut0.7008
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
