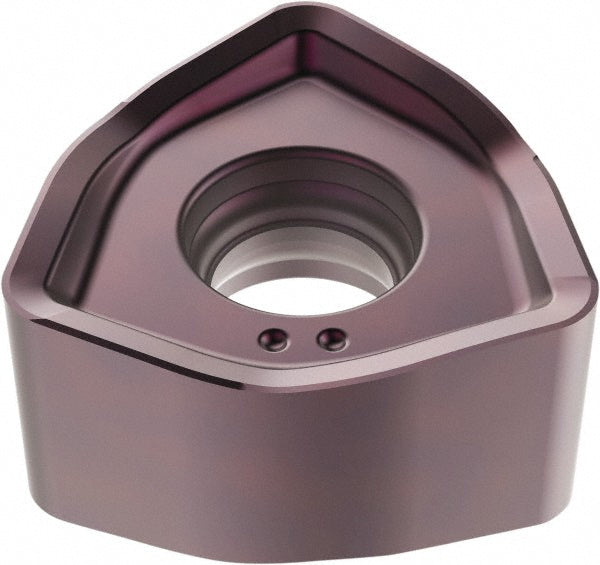

218.21-230TR-06-M15 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 03113822

Seco

218.21-230TR-06-M15 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 03113822

MFR# 03113822ISO/ANSI# 218.21-230TR-06-M15Cat# 218.21-230TR-06-M15Series 218.21-230

$39.91List $51.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeMP2050
MaterialSolid Carbide
CoatingTiSiN

Description

The Seco 03113822 is a 218.21-230TR-06-M15 solid carbide indexable insert, grade MP2050, TiSiN coated.

Specifications

Ansi code218.21-230TR-06-M15
Chip breakerM15
Coating finishTiSiN
Coating processPVD
Convex radius0.3346
Corner radius0.0630
Cutter series compatibilityR217.21-R230; R220.21-R230
Cutting edge styleT-Land
Hole diameter0.1870
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size230
Insert size code230TR-06
Insert style218.21
Iso code218.21-230TR-06-M15
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number218.21-230TR-06-M15
Manufacturer gradeMP2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0710
Multi use toolYes
Number of cutting edges6
RakeNegative
Rake angle17
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness in15/64
Thickness range0.2200 to 0.2350
Width in1/2
