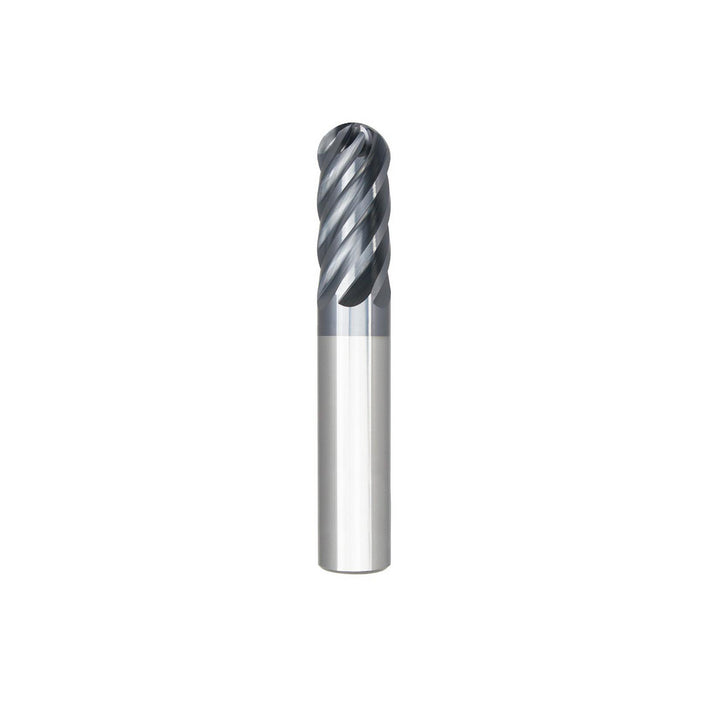

3/8" 6-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03115946

Seco

3/8" 6-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03115946

MFR# 03115946Cat# SB638-0.375-D1-B.0-Z6Series SB638

$128.73
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes6
MaterialSolid Carbide
CoatingAlTiN

Description

The Seco 03115946 is a 3/8 6-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 3/8 length of cut, 2 overall length. Series SB638.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Helix styleMedium
Length of cut in3/8
Length typeStub
Manufacturers catalog numberSB638-0.375-D1-B.0-Z6
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1875
Number of flutes6
Overall length in2
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length0.3750
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
