Seco

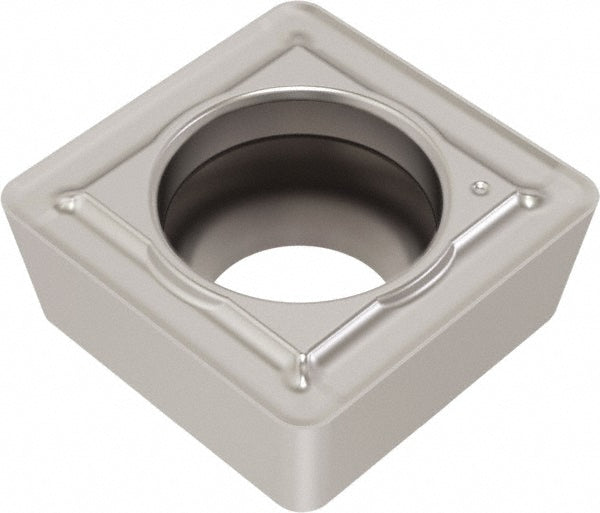

Carbide Insert, Grade DS2050, TiAlN - Seco 03134314
MFR# 03134314Series Perfomax
$23.32List $29.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDS2050
MaterialCarbide
CoatingTiAlN
Description
The Seco 03134314 is a carbide indexable insert, grade DS2050, TiAlN coated. Suited for universal.
Specifications
ChipbreakerMP
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.8
Included angle degree90
Inscribed circle (mm)7.94
Insert materialCarbide
Insert size070308
Insert size code07
Insert styleSCGX
Length0.313
Manufacturer gradeDS2050
Material gradeC2; C3
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Width0.313
