Seco

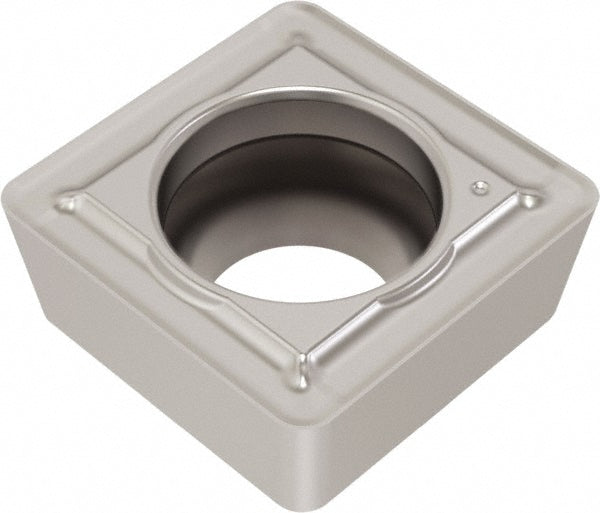

3/8" IC Solid Carbide Insert, Grade DS2050, Coated - Seco 03134315
MFR# 03134315Series Perfomax
$24.59List $31.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeDS2050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03134315 is a solid carbide indexable insert, grade DS2050, Coated coated. Suited for universal.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius (mm)0.80
Cutting directionLeft Hand; Right Hand
Included angle degree90
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size09T308
Insert size code09
Insert styleSCGX
Length0.3750
Manufacturer gradeDS2050
Material gradeC2; C3
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Width0.3750
