Seco

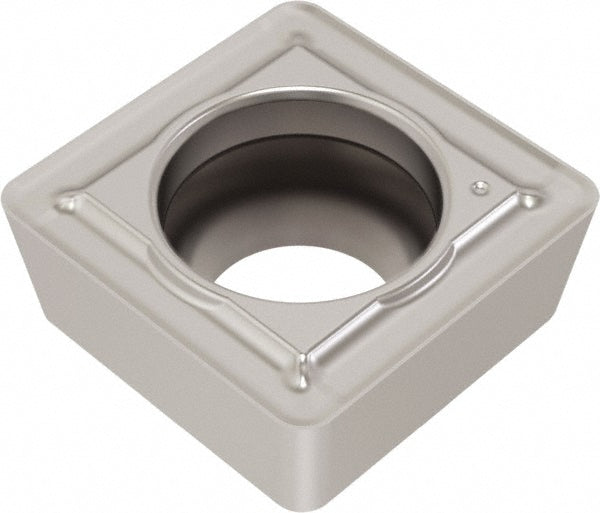

1/2" IC Solid Carbide Insert, Grade DS2050, Coated - Seco 03134317
MFR# 03134317Series Perfomax
$30.49List $39.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeDS2050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03134317 is a solid carbide indexable insert, grade DS2050, Coated coated. Suited for universal.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius (mm)0.80
Cutting directionLeft Hand; Right Hand
Included angle degree90
Inscribed circle in1/2
Insert materialSolid Carbide
Insert size120408
Insert size code12
Insert styleSCGX
Length0.5000
Manufacturer gradeDS2050
Material gradeC2; C3
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Width0.5000
