Seco

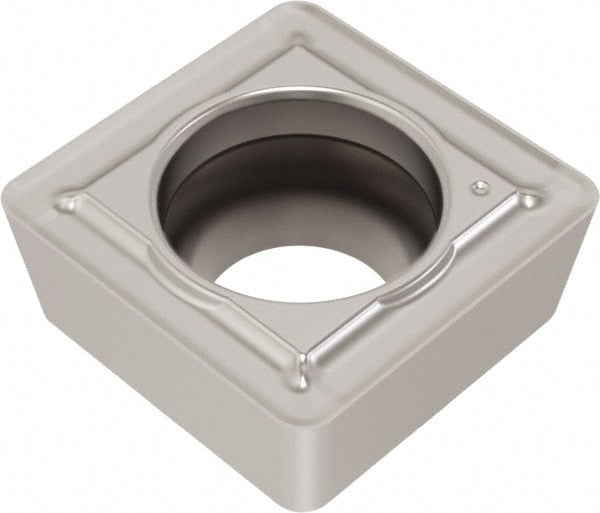

5/8" IC Solid Carbide Insert, Grade DS2050, Coated - Seco 03134318
MFR# 03134318Series Perfomax
$33.36List $42.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
GradeDS2050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03134318 is a solid carbide indexable insert, grade DS2050, Coated coated. Suited for universal.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius (mm)1.20
Cutting directionLeft Hand; Right Hand
Included angle degree90
Inscribed circle in5/8
Insert materialSolid Carbide
Insert size150512
Insert size code15
Insert styleSCGX
Length0.6250
Manufacturer gradeDS2050
Material gradeC2; C3
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Width0.6250
