Seco

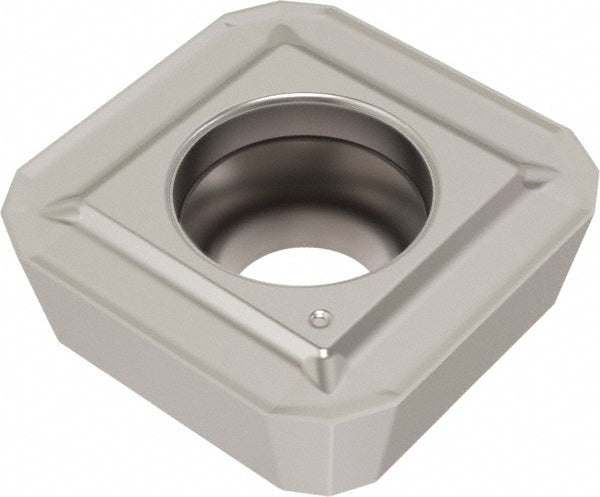

Solid Carbide Insert, Grade DS4050, Coated - Seco 03134319
MFR# 03134319Series Perfomax
$20.81List $26.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDS4050
MaterialSolid Carbide
CoatingCoated
Description
The Seco 03134319 is a solid carbide indexable insert, grade DS4050, Coated coated. Suited for universal.
Specifications
ChipbreakerMC
Coating finishCoated
Coating processPVD
Cutting directionLeft Hand; Right Hand
Included angle degree90
Inscribed circle (mm)5.56
Insert materialSolid Carbide
Insert size0502
Insert size code05
Insert styleSPGX
Length0.2190
Manufacturer gradeDS4050
Material gradeC3; C4
Primary workpiece materialUniversal
Relief angle11
ShapeSquare
Width0.2190
