Seco
0.4531" IC Carbide Insert, Grade DP2000, TiCN - Seco 03136963
MFR# 03136963Series Perfomax
$27.10List $34.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDP2000
MaterialCarbide
CoatingTiCN
Description

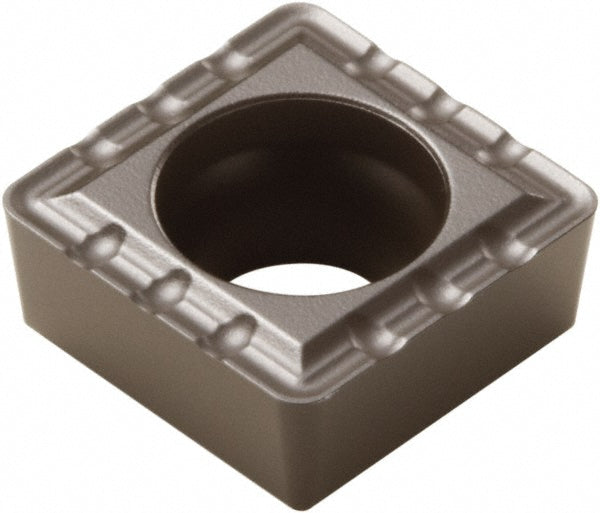

The Seco 03136963 is a carbide indexable insert, grade DP2000, TiCN coated. Suited for steel.
Specifications
ChipbreakerP1
Coating finishTiCN
Coating processDuratomic
Corner radius (mm)0.8
Included angle degree90
Inscribed circle0.4531
Insert materialCarbide
Insert size11T308
Insert size code11
Insert styleSCGX
Length0.4531
Manufacturer gradeDP2000
Material gradeC2; C3
Primary workpiece materialSteel
Relief angle7
ShapeSquare
Width0.4531
