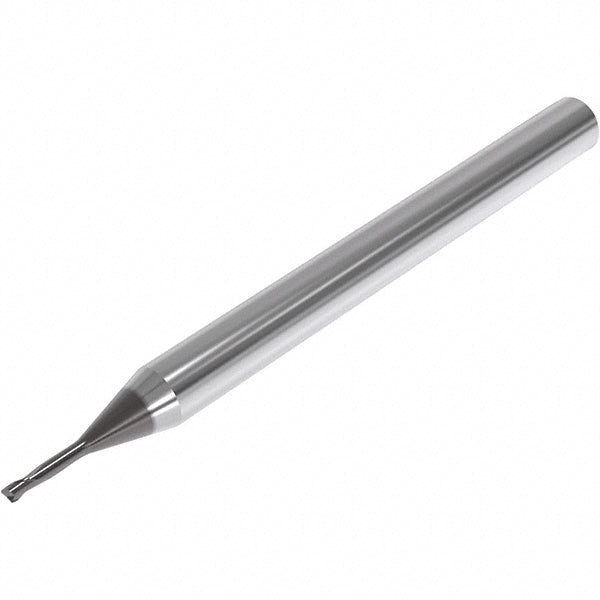

0.0600" 2-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 03171132

MFR# 03171132Series JME542

$101.08List $125.28 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 03171132 is a 0.0600 2-flute Solid Carbide corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. Series JME542.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Corner radius0.0059

Corner radius tolerance-0.005 to 0.005 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleMedium

Length of cut1.3386

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal

Material removal typeRoughing

Mill diameter0.0600

Mill diameter tolerance0.00 to -0.01 mm

Neck diameter (mm)1.45

Number of flutes2

Overall length (mm)50.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal

Reach length0.2953

Shank diameter (mm)4.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
