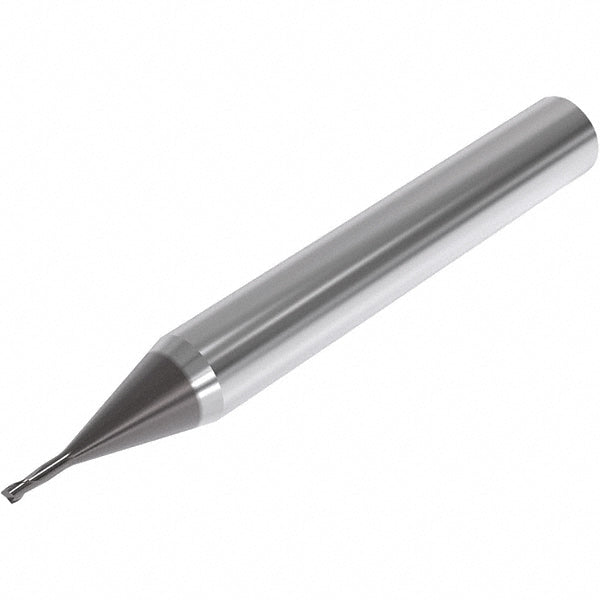

0.0300" 2-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 03171147

Seco

0.0300" 2-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 03171147

MFR# 03171147Series JME562

$101.08List $125.28 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingSIRON-A

Description

The Seco 03171147 is a 0.0300 2-flute Solid Carbide corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. Series JME562.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishSIRON-A
Coolant throughNo
Corner radius0.0020
Corner radius tolerance-0.005 to 0.005 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut0.3543
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal
Material removal typeRoughing
Mill diameter0.0300
Mill diameter tolerance0.00 to -0.01 mm
Neck diameter0.7600
Number of flutes2
Overall length (mm)50.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal
Reach length9.8425
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
